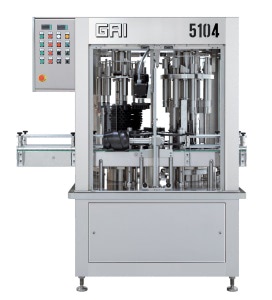

Automatic washer-dryer in stainless steel with continuous movement
[1] Bottle washing station with central brush on revolving turret. [2] Drying station on revolving turret.Infeed screw bottles inlet. Equipped for one type of cylindrical bottle. Machine supplied with security guards according to CE standards with tempered glass walls. Star washing inlet. Shaped star drying outlet. Star transfer and bottle outlet. The basement is covered by soundproofing materials to reduce noise. Machine to be installed in line (without conveyor or re-sending roller, machine by-pass kit). The formats height adjustment is electrical.
Bottle Ø 60-115mm h 170-400mm
Monobloc movement type: Continuous
WASHING STATION
Revolving plates: 4
Pushing bottle heads: 4
Capsule brush station: 1
Bottle bottom brush station: 1
DRYING STATION
Revolving plates: 4
Pushing bottle heads with bottle capsule, body and shoulder dry: 4
Rubber wiper for bottle body dry: 4
Lateral blowers (adjustment according to diameter) for final body dry: 4
Device for bottle bottom dry: 4
Speed ​​850-2500 bottles / hour (speed adjustment with inverter)
Manufacturer: GAI S.p.A.
Model: 5104P
Code: GAI-5104P-R0
Category: AUTOMATIC FULL BOTTLES WASHER AND DRYER
