Poker 700 - Monobloco Automático

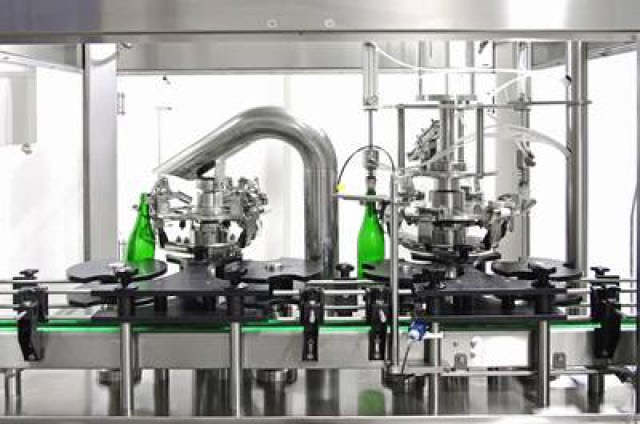

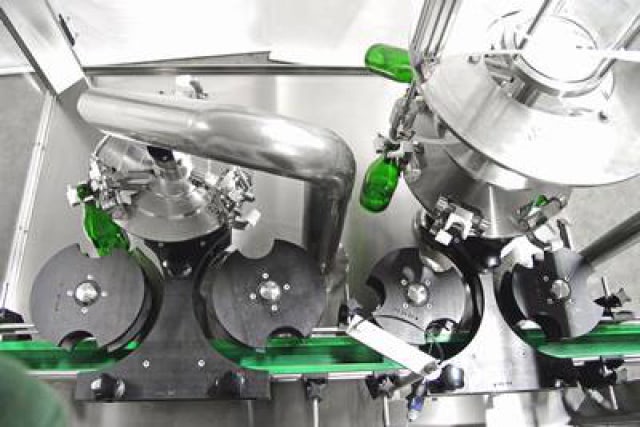

The automatic monobloc POKER 700 mainly consists of two towers of which the first continuous rotation and the second
intermittent rotation.
The first tower performs flow operation :? Equipped with three socket sets / close the bottle while running?
the duty cycle becomes the bottle about 65 ° after which extracts the crown cap. Following? The extraction of the bottle cap,
which remains in an inclined position, is closed to limit the wine leakage. Before the end of rotation is reported in
vertical position, so that it can be discharged on the conveyor belt.
The second tower, which has six operating points, each equipped with a gripper in? Arc rotation clues
three operations: the spillway, the dosage of liquor and leveling. The bottle is again tilted to the dosage of liquor.
G? leveling operation takes place after the bottle has been reported in the vertical position.
In the path between the first and second tower is installed a group that performs the control of? Possible presence of buffer.
The first tower is also equipped with a device for discharge of the covers that are transported into a basin (removable
to allow emptying) located at? inside the crankcase.
All parts in contact with the product are stainless steel AISI 304, approved for food use.
