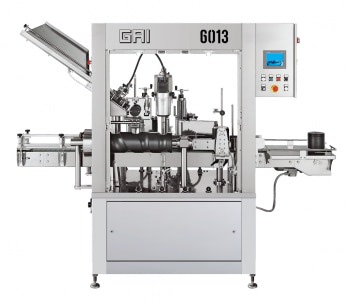

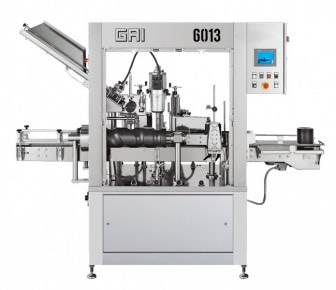

Automatic monobloc in stainless steel composed of:
[1] Slanted capsules dispenser mod. 4603D-408 suitable for tin, polylaminated and shrink-wrap foils with cork detection photocell, bottle neck centring device and pressing capsule.
[2] Sleeker for tin and polylaminate capsules with heads speed rotation adjusted through inverter from 1.000 to 2.000 r/pm (for aluminium caps add pre-sleeker).
[3] Linear labeller for autoadhesive labes with:• 3 Station for body label with height adjustment with step-step motor.• Back label station with heigh adjusting with step-step motor.Variable step infeed screw bottles inlet and transfer between stations.Equipped for one type of cylindrical bottles.Labelling station and monobloc management centralized from the control panel with touch screen (possibility to save bottles format).
Machine with 0,3Hp conveyor and collecting plate of 500 mm.Machine supplied with security guards according to CE standards.
Speed:Shrinking caps 800-3000 bottles/hourPolylaminated and tin foils 800-1.200 bottles/hourLabelling: 800-3000 bottles/hour

TECHNICAL FEATURES

-Labels up to a max. of 300 mm on cylindrical bottles -Paper passage 190 mm and blade 190 mm-Label application tolerance ± 1 mm (on cylindrical bottles) -Maximum number of label dispensing stations 3 -Label roll with inside diameter 76 mm and outside diameter 280 mm -Height adjustable stations, between 10 and 150 mm from the bottom of the bottle -Possible installation of a thermal transfer printer (see page 622) -Possible mechanical orientation (bottle mark search) (See page 623) -Possible optical orientation -Optional neck label station with step-step motor and vertical and angular adjustment. ? Suitable for cylindrical or tapered bottles, maximum taper 1,5° -Bottle diameter from 60 to 115 mm (optional from 50 to 60 mm) -Bottle height from 230 to 400 mm with caps dispenser -Bottle height from 170 to 400 mm only labelling
