MONOBLOCK PACKAGING

MOD. F/I/I/C 2

Machine suitable for forming the box by folding the short bottom flaps, preparing the bottle packaging, taking out the hives and inserting them into the bottle packaging. The boss then takes the jars with the hives and places them inside the box. Top and bottom closure with hot glue.
There is also a version with adhesive tape closure (mod.”F/I/I/N 2”).

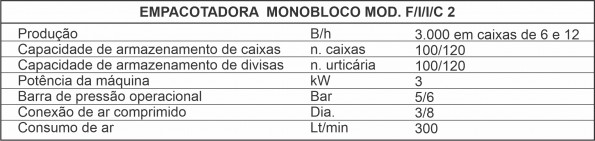

Production: B/h 3,000 in boxes of 6 and 12

(**) Same model but with different cardboard closure, one with tape and the other with glue.

Characteristics

Cardboard magazine adjustable to various formats.
Warehouse box collection unit mounted on an electromechanically controlled motorized shaft, with positioning managed by an encoder.
Hive warehouse positioned on the top of the cardboard warehouse, with acetal resin carpet, step-by-step advancement with electro-pneumatic control.
Movement of the hive head holder with two axes controlled with electro-pneumatic movement.
The hive is placed in the previously prepared bottle.
Removal of boxes and hives with an air depression system managed by Venturi.
Motorized bottle conveyor that feeds bottles into the machine in a single row.
Electro-pneumatic bottle pusher, which prepares the bottles on a surface with the required configuration. This system allows you to process shaped bottles (truncated-conical, rectangular, square) and avoids non-channeling problems.
Bottle collection with electromechanically controlled vertical movable gripping head.
This system allows the collection and lifting of bottles and, after moving the platform
below, its discharge into the box previously prepared in the lower position. Opening the box flaps is facilitated by a special centering device with electro-pneumatic movement.
Transfer of the filled box from the filling area to the lower and upper closing and gluing area, and subsequent unloading with an electromechanically controlled axis.
Gluing unit with melting unit, hose, dispensing gun and solenoid control valve.
“Touch-screen” display to control machine functions, change formats and view any anomalies.
Machine equipped with electrical system, electrical panel with low voltage controls, safety devices and protections to prevent accidents.
Machine managed by Siemens S7 series PLC.
