Equipments
capping machines
Série 4500-4600 - GAI

PRODUCT TYPE:
Monoblock

DESCRIPTION:

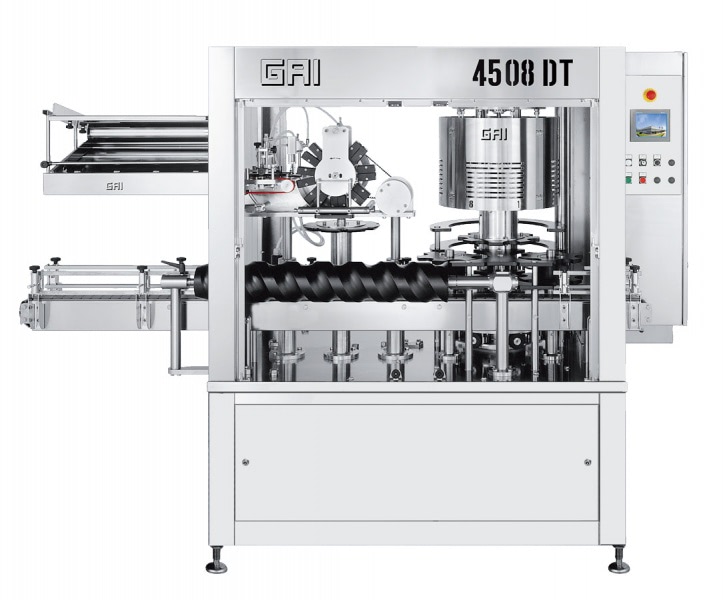

Automatic monobloc in stainless steel composed of:
[1] Long autonomy capsules dispenser mod. 4608D-401 for tin, polylaminated and shrinking capsule with:• Capsules presence photocell• Drum with multi cups• Press-capsules device before sleeking
[2] 8 Multi-heads revolving capper for shrinking capsules with:• Ventilate shrinking head• Temperature regulated by a thermostat set up by PLC• Security pneumatic liftingInfeed screw bottles inlet.Equipped for one type of cylindrical bottle.Machine supplied with security guards according to CE standards with tempered glass walls.Machine fully administrated by PLC and Touch Screen.Anti-jamming device with photocell at monobloc exit.Machine to be installed in line (without conveyor and re-sending roller, machine by-pass kit).Turrets electrical height adjustment.

Speed:Shrinking: 2000-10000 bottles/hour (INVERTER)

Manufacturer:GAI S.p.A.
Model:4508DT
Code:GAI-4508DT-R0
Category:MULTIHEADS SHRINKING MONOBLOCK
